Rapid response Humi. & Temp. sensor for Automotive

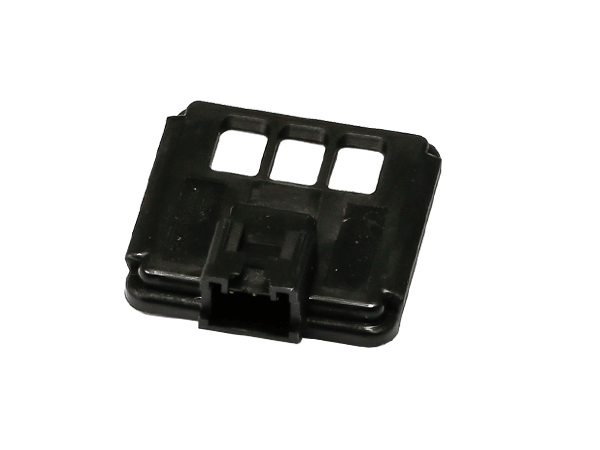

ADS

Auto Defog Sensor is used to measure temperature and humidity of the vehicle window. It is provides driving convenience by quickly measuring the condition of window. It is a product specialized for the vehicle environment with AEC-Q100 & 200 parts applied.

Features
▣ Fully calibrated and temperature compensated capacitive Humidity sensor
▣ Rapid response
▣ Excellent reliability & stability performance
▣ AEC-Q200 qualified NTC thermistor and other parts
Specification

  Parameter

Humidity

Temperature

  Rated Voltage

DC 5V

  Current consumption

MAX 5mA

  Operating Temperature Range

-30 ~ 105

  Operating Humidity Range

0 ~ 100%RH

  Detecting Accuracy (@25, 80%RH)

±2%RH

±0.5

  Output

Analog(Voltage) or Customized
