Precise measurement for PM2.5 Automotive Laser Sensor

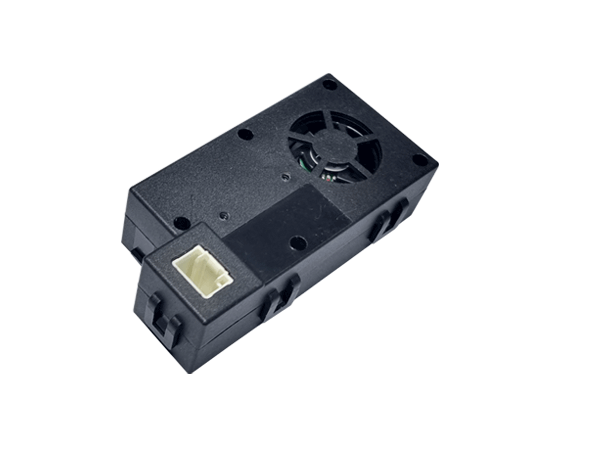

SDLA-03U

The SDLA-03U sensor module is designed for automotive cabin environments and enables more precise measurements by applying an algorithm that reflects particle size to the raw data measured based on quantitative flow rate with fan speed control and laser scattering technology.

Features
▣ Measurement Principle : Laser diode Scattering
▣ Air Flow Generation : BLDC FAN
▣ Certified PM2.5 sensors for automotive cabin environments
▣ PM(Particulate Matter) level indicators or concentration display for automotive cabin environments and air conditioners
Specification

  Measurable Particle size

over 0.3um

  Measurement range

0 ~ 500 ㎍/㎥

  Measurement Accuracy

±15㎍/㎥ or ±15%

  Operating Temperature

 - 40 ~ 80℃

  Operating Humidity

under 95%RH

  Power Supply

DC 9V ~ 16V

  Current Consumption

under 200mA

  Electrical Interface

LIN 2.2

  Dimension

82.5(L) X 40.0(W) X 24.0(H)(mm)
